The Renson® C system

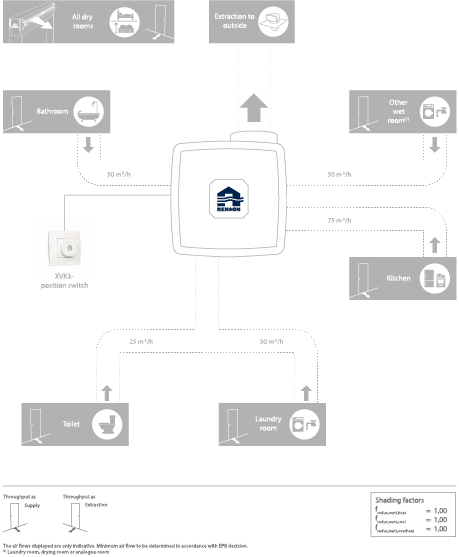

The Renson® C system uses a combination of self-regulating Invisivent window ventilations and a discharge fan to create a pleasant and healthy indoor climate.
Specificații
- EC vibration-free direct current motor: total airflow of 350m³/h at max pressure of 200Pa
- Possible to connect up to 6 rooms thanks to 6 extraction points on the unit
- Standardly all 6 extraction points equipped with adaptors Ø125 and Ø80
- Exhaust Ø125mm (adaptor to Ø150mm)
- Recyclable plastic housing (polypropylene)
- Compact size: easy to install in a technical room, attic or behind a false ceiling/wall
- Horizontal or vertical installation by means of 4 screws
- Easy maintenance of the fan thanks to removable cover
- Whisper quiet motor
- Controlled via 3 stage switch
- Extraction grill:
- Rectangular white PVC grill (RAL 9010) with removable front panel for maintenance
- Connection diameter 80mm
- Power supply: 9V battery (not included) or power board 12 VAC (optional)
- Dimensions extraction grilles PH75 , PT25 , H50 : 151 x 159 x 43mm (LxWxH)
- Easy maintenance with removable cover
PT25: Extraction toilet with presence detector and timer 20 ‘
H50: Extraction laundry room fluid control with humidity sensor
PH75: Extraction bathroom or kitchen with presence detector and humidity sensor
Pachet
Basis package Cbase
Kit
1 x motor unit EX330CB
4 x cover cap and/or Red Ø125 > Ø80
2 x cover cap Ø125
1 x adaptor 125-150 mm (exhaust)
1 x power cord
ID
66032000
Position switch
XVK3 position switch
incl. rotary knob – central plate - cover plate
ID
66014009
Modular grill frame
Ø80
1 x grill frame
1 x plaster cardboard
ID
66031624
Modular grill frame
Ø125
1 x grill frame
1 x plaster cardboard
ID
66031625
Cover plate Puro
Ø80
1x Cover plate Puro Ø80
ID
66031630
Cover plate Puro
Ø125
1x Cover plate Puro Ø125
ID
66031631
Cover plate Square
Ø80
1x Cover plate Square Ø80
ID
66031632
Cover plate Square
Ø125
1x Cover plate Square Ø125
ID
66031633
Cover plate Diagonal
Ø80
1x Cover plate Diagonal Ø80
ID
66031634
Cover plate Diagonal
Ø125
1x Cover plate Diagonal Ø125
ID
66031635
Cover plate Aqua
Ø80
1x Cover plate Aqua Ø80
ID
66031636
Cover plate Aqua
Ø125
1x Cover plate Aqua Ø125
ID
66031637
Cover plate Artist
Ø80
1x Cover plate Artist Ø80
ID
66031638
Cover plate Artist
Ø125
1x Cover plate Artist Ø125
ID
66031639
Cover plate Deco
Ø80
1x Cover plate Deco Ø80
ID
66031642
Cover plate Deco
Ø125
1x Cover plate Deco Ø125
ID
66031643
Design valves
SQair extraction valve (Deluxe)
1x SQair extraction valve (Deluxe)
ID
76050401
Design valves
SQair extraction valve (Basic)
1x SQair extraction valve (Basic)
ID
76050404
Specificații tehnice
- Dimensions: 320 x 320 x 180 mm (LxWxH)
- Weight: 3,370 Kg
- Voltage: 1 x 230V/50Hz
- Average power consumption: depends on the chosen ventilation stage
- Maximum power consumption: 28 W

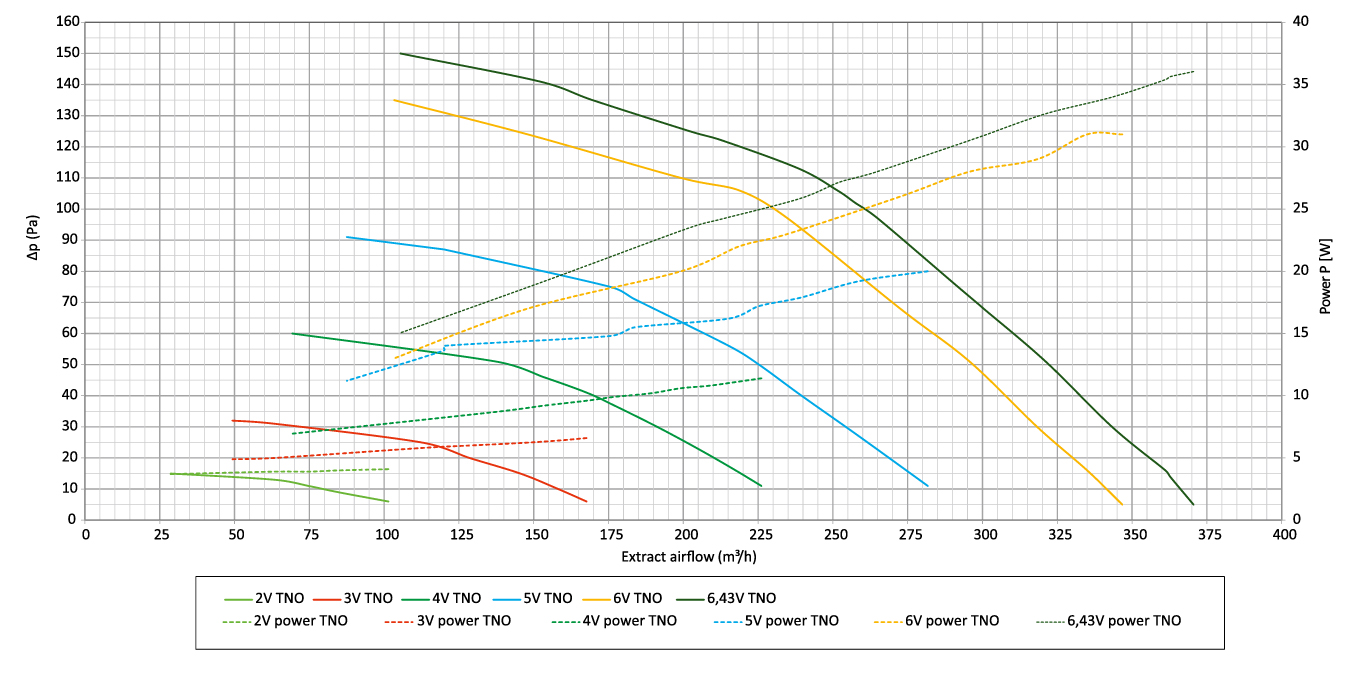

Fan curves
